Grain Drying Machine

Widely applications in grain seeds drying after harvest

Low temperature circulating drying with quite low broken rate

Low power required and limit thermal energy consupmtion

High efficiency in moisture reducing

Long services life

Low cost

Mobile:+86 18539925907

Email: charles@eco-mill.com

We’re here to help:Easy ways to get the answers you need
Send E-mail GET PRICE

Description Parameter Case Inquiry

Description

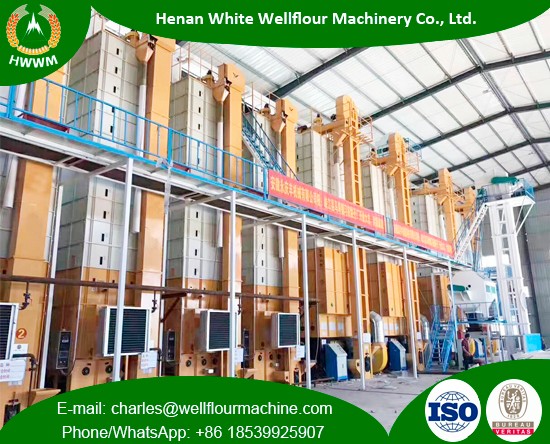

This is our new developed Low Temperature series circulating grain dryer with properties of wide applications, low power and thermal energy consumption, high efficiency and long service life. We increased the height and removed the screw conveying system by taking wearable and slippy stainless steel for channel plate to make sure there is no collision when grain seeds falling down automatically aganist broken damage.

Henan White Wellflour Machinery Co., Ltd

Parameter

Model: WW-15					Model: WW-32
Weight (kg)				3200	Weight			7500
Capacity	Rice Paddy	Volume (min-max) (kg)		6500-15500	Capacity	Rice Paddy	Volume (min-max) (kg)	9000-30000
		Capacity max (kg/h)		548-1315			Capacity max (kg/h)	2600
	Corn/Maize	Volume (min-max) (kg)		7500-16300		Corn/Maize	Volume (min-max) (kg)	12000-33000
		Capacity max (kg/h)		1080-1800			Capacity max (kg/h)	1000-3600
	Wheat	Volume (min-max) (kg)		7500-16300		Wheat	Volume (min-max) (kg)	12000-33000
		Capacity max (kg/h)		550-1315			Capacity max (kg/h)	1000-3250
	Oil Seeds	Volume (min-max) (kg)		6500-14850		Oil Seeds	Volume (min-max) (kg)	12000-31000
		Capacity max (kg/h)		675-1620			Capacity max (kg/h)	1000-3500
Size	Height (mm)			9871	Size	Height (mm)		11460
	Length (mm)			4288		Length (mm)		4790
	Width (mm)			2738		Width (mm)		5100
Available fuel	Firewood (branch, rice husker, crops), coal, gas, gasoline, steam, electricity, etc				Available fuel	Firewood (branch, rice husker, crops), coal, gas, gasoline, steam, electricity, etc
Power	Rated Voltage (V)			3 phase, 380V/50Hz	Power	Rated Voltage (V)		3 phase, 380V/50Hz
	Elevator motor (kw)			1.5		Elevator motor (kw)		4
	Grain movement motor (kw)			0.2		Grain movement motor (kw)		0.4
	Rotary motor (kw)			0.55		Rotary motor (kw)		1.5
	Air exhaust motor (kw)			4		Air exhaust motor (kw)		8
	Dust exhaust motor (kw)			0.25		Dust exhaust motor (kw)		0.25
	Total (kw)			6.5		Total (kw)		14.15
Performance	Grain feeding period			Around 63mins	Performance	Grain feeding period		Around 69mins
	Grain discharging period			Around 58mins		Grain discharging period		Around 64mins
	Drying capability (t.%h)			15-20		Drying capability (t.%h)		25-35
	Moisture reducing (%)		Wheat	0.5-1.5		Moisture reducing (%)	Wheat	0.5-1.5
			Corn/Maize	1.2-2			Corn/Maize	1.2-2
			Rice Paddy	0.2-0.7			Rice Paddy	0.2-0.7
